Your EV is only as good as the connection that drives it. As an electric vehicle owner in an evolving EV space, that connection needs to be safe, reliable & fast. As electric vehicles rise in popularity, attention to the systems facilitating seamless charging is becoming more apparent. From publicly available stations to home options, reliable infrastructure is now a requirement and not a choice!

At the center of it all are EV charging guns—the physical link between charger and car. They may seem simple, but these devices handle high voltages, prevent faults, and ensure your EV charges efficiently.

Whether you’re a driver, installer, or planner, understanding how EV charging guns work and why they matter—is key to navigating the future of electric mobility.

What Is an EV Charging Gun?

An EV charging gun is a portable device that connects to your electric vehicle to supply power from a charging station. It’s the bridge between your car and the grid—engineered for both safety and performance.

It’s more than just a plug. A charging gun is part of the larger EV charging connector system, which includes the cable, plug head, locking latch, and communication pins. These don’t just deliver power—they allow your EV and the charger to communicate. This “conversation” helps decide how much current to transfer, when to start or stop, and how to activate safety features.

Modern EV charging guns are designed to:

• Handle high-power loads safely
• Prevent accidental disconnection
• Enable secure communication with your EV’s battery system

Depending on the standard and charging level, the EV charging connector structure and pin layout can vary. But the goal remains: consistent, safe charging across vehicles and environments.

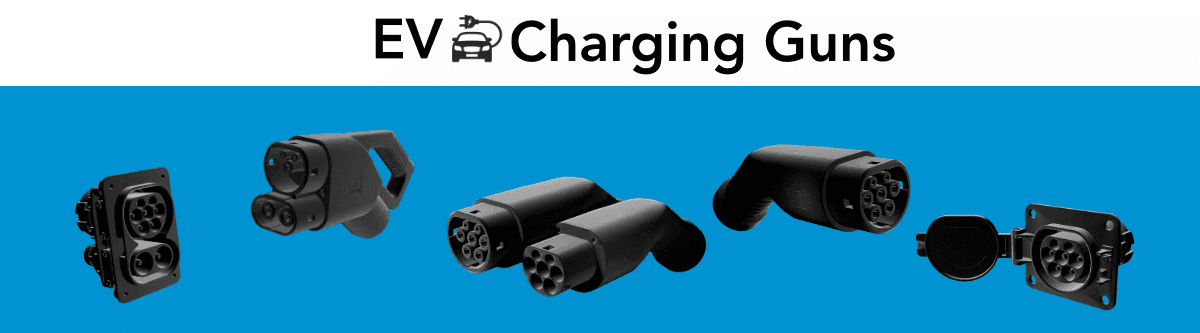

Different Types of EV Charging Guns

EV charging guns aren’t one-size-fits-all. They vary by speed, voltage, and regional standards. The right one depends on your EV and available infrastructure.

1. Type 1 (SAE J1772)

• Region: North America
• Charging: AC (Level 1 & 2)
• Connector: 5-pin
• Used in older U.S. EVs like the Nissan Leaf and the Chevrolet Volt</>
• Limited use in India and Europe

2. Type 2

• Region: Europe and India
• Charging: AC
• Common in European EVs and Indian public networks
• Reference Standard: 62196-2
• Enables charging (up to 43 kW)
• Application: It supports both single-phase and three-phase AC charging, making it flexible for use at home, in the workplace, and in public charging stations.
• Supports three-phase AC for faster charging

3. CCS-2(Combined Charging System)

• Region: Europe & India
• Charging: AC + DC ( Fast Charging)
• Connector: Type 2 AC Pins + two DC pins
• Standard: IEC 62196-3
• Enables rapid charging (up to 350 kW)
• Increasingly popular for new EVs
• Applications: Passenger Cars (EVs & SUVs), Commercial Vehicles (Buses & Trucks), Fleet & Depot Charging

4. CHAdeMO

• Region: Japan
• Charging: DC fast
• Connector: Round multi-pin
• Used by Nissan and Mitsubishi
• Limited use outside Japan, but supported by some Indian stations

5.  Bharat DC Type 2-Gun (India)

• Region: India
• Charging: DC (15–30 kW)
• Developed under the Bharat EV policy
• Found in many Indian public chargers

Each of these types of EV charging guns differs in voltage, pin layout, and protocol. Compatibility is crucial. Using an incorrect gun may lead to delays or damage. Always check your vehicle manual or the station specs.

How to Use an EV Charging Gun: A Step-by-Step Guide

Using EV charging guns properly ensures safety, efficiency, and longer equipment life. Here’s a simple guide:

1. Check Compatibility: Confirm the gun matches your vehicle’s inlet (Type 2, CCS2, etc.). A mismatch won’t fit and could cause damage.
2. Power On the Station (If Required): Some stations need authentication via app, RFID, or screen. Complete this before plugging in.
3. Insert the Gun Securely: Align and press the gun until it clicks into place. Most guns lock to prevent disconnection.
4. Monitor Charging: Charging starts automatically or after confirmation. Track it via the station, EV dashboard, or app.
5. End and Disconnect:  Once charging ends, unlock the gun and remove it gently. Coil the cable neatly if at a public charger.

Tip: Do not force the gun out; most unlock automatically after the session ends.

Using EV charging guns correctly protects your EV and the charger from wear or faults.

EV Charging Plugs vs Guns: What’s the Difference?

People often use “EV charging plug” and “EV charging gun” interchangeably, but they’re not quite the same.

• Plug: The end connector that fits into the EV inlet.
• Gun: The entire handheld unit, including plug, handle, latch, and cable connection.

Why it matters: EV charging plugs vary in shape and pin design by region, voltage, and protocol—even when the gun looks similar. For example, a Type 2 plug might support single or three-phase AC depending on the setup.

For installers and manufacturers, understanding the specific EV charging connector standard guarantees safety and compatibility.

Conclusion: Powering the EV Revolution Safely

Understanding EV charging guns is essential for anyone in the EV space. These aren’t just cables—they’re engineered tools that ensure safe, efficient energy transfer.

From picking the right type to using it properly, each step matters for a smooth charging experience. As infrastructure grows, so will the demand for certified, high-quality EV charging connectors and plugs.

For OEMs, station developers, and system integrators, it’s vital to choose durable, safety-tested products that meet international and local standards. That’s where trusted suppliers matter—Elcom, for example, offers precision-built solutions designed to meet India’s growing EV needs with the reliability the future demands.

Because in electric mobility, performance starts at the plug.
