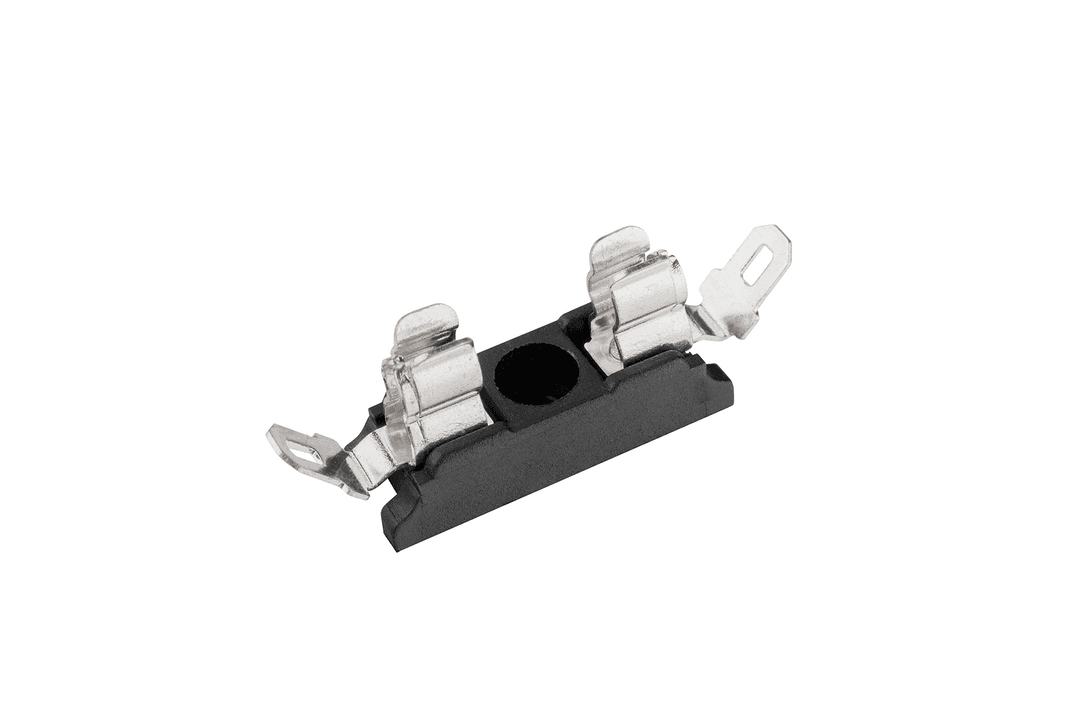

FH-2, FH-3
FH-2,
FH-3
Specification
- Reference Standard
IEC-60127-6
- CE Marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
Chassis mounting fuse holder
V/A Rating
6.3A/ 10A , 250V AC
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KV AC
Contact Resistance (Initial)
10 m ohms Max
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C TO +85°C
Mounting
Chassis, Screw-type
Fuse Link Size
Ø5.00 x 32.00 mm/ Ø6.30 x 32.00 mm
Terminals
Solder-type
Material
Material
Parameters
Specification
Body
Nylon
Terminals
Brass, Tin Plating
Standard and Approvals
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC-60127-6
CE Marking
CE, RoHS ( On Request )
Download PDF
Elcom FH-2-FH-3 Data Sheet
68 KB
