Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
Fuse Holder
Mounting Style
Chassis Mounting fuse holder with Snap - in cap
Fuse Size
ø 6.30 x 32 mm
V/A Rating
10 A, 250V AC
Contact Resistance (Initial)
50 m ohms Max
Insulation Resistance at 500 VDC
100 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C to +85°C
Mounting
Chassis - Screw Type
Terminals (Standard)
Screw - In
Material
Material
Parameters
Specification
Material Body
Nylon GF
Material Terminals
Brass, Nickel Plating
Colour (Standard)
Black
Standard and Approvals
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 60127-6
Features

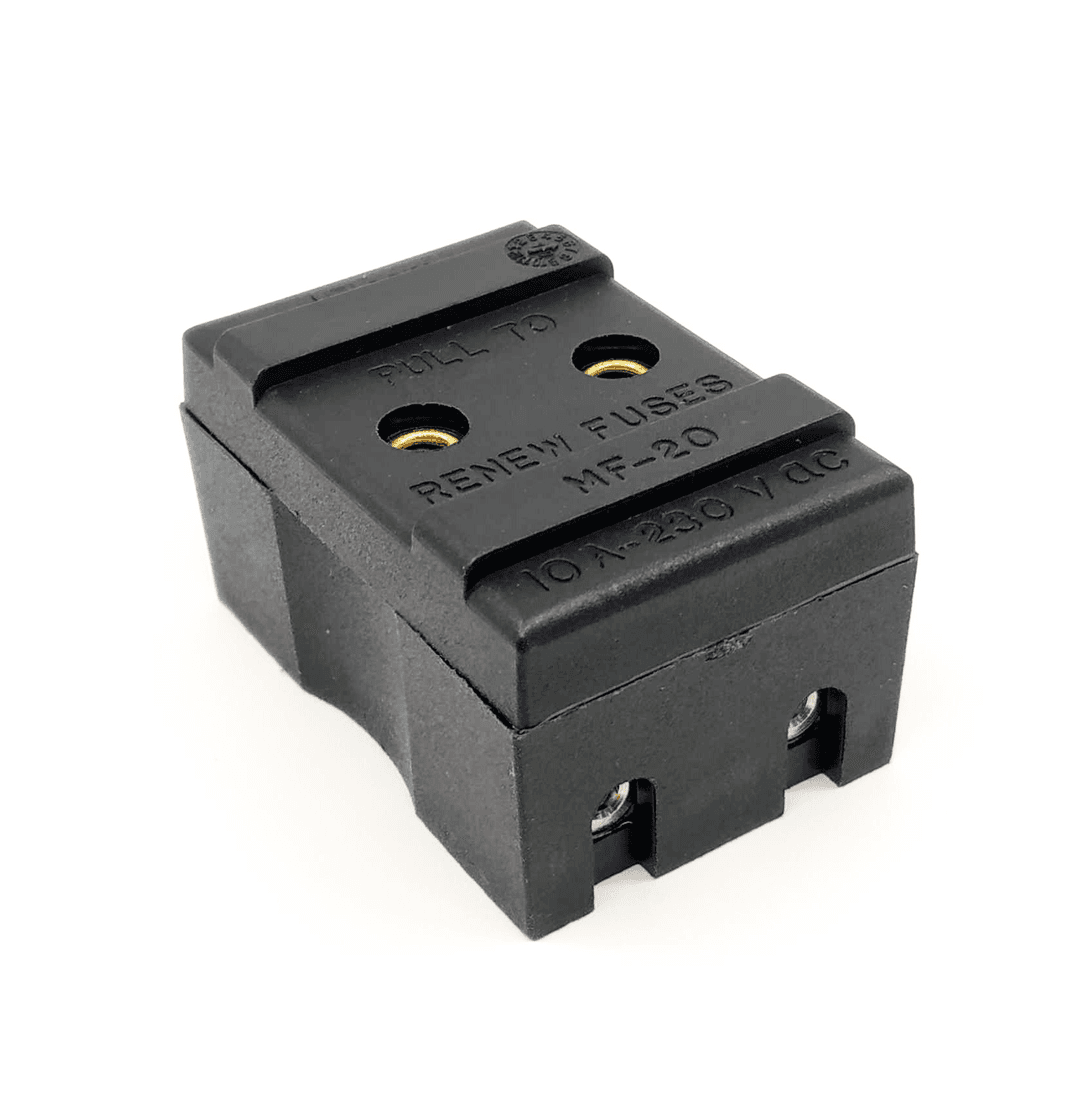

Features of MF-20
Features
of
MF-20
Can be used as an alternative to circuit breakers
Availability of synchronized Fuse holders, in either single or double fuse with IEC inlets
Simple mounting styles and economy of space
Wide range of operating temperature - up to 125 Deg Centigrade
Data Sheet
Elcom MF-20 Data Sheet
32 KB
