HFH-1
HFH-1
Specification
- Reference Standard
IEC-60127-6
- Compliance marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

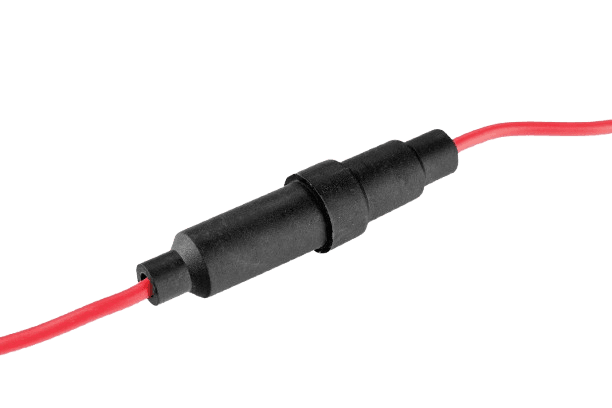

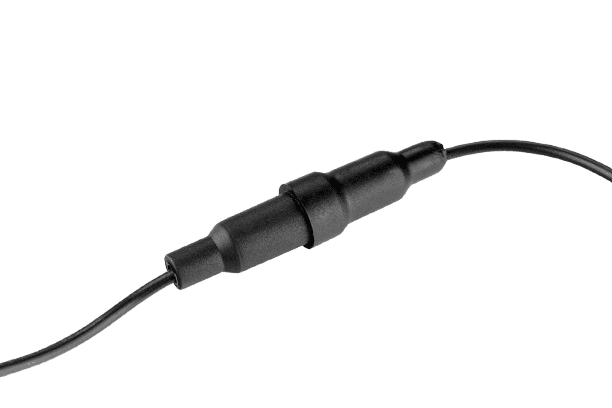

Hanging Fuse Holder
V/A Rating ( Standard )
4 Amp -10 Amp 250V AC
Contact Resistance ( Initial )
40 m Ohms Max.
Insulation Resistance at 500 V DC
1000 M Ohms Min.
H.V.Break Down Test ( For 1 Minute)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C TO +85°C
Permissible Temperature
270° for 5 Sec. Max
Mounting
Hanging
Terminals (Wire)
Solder Type
Fuse Link Size ( in mm )
Ø5.0x 20.00 mm
Cap Design
Screw-In
Material
Material
Parameters
Specification
Body
Nylon-Black / Polycarbonate-Transparent
Contacts
Brass ,Tin plating
Reference Standard & Approval
Reference
Standard
&
Approval
Parameters
Specification
Reference Standard
IEC-60127-6
Compliance marking
CE, RoHS ( On Request )
Data Sheet
Elcom HFH-1 Data Sheet
170 KB
