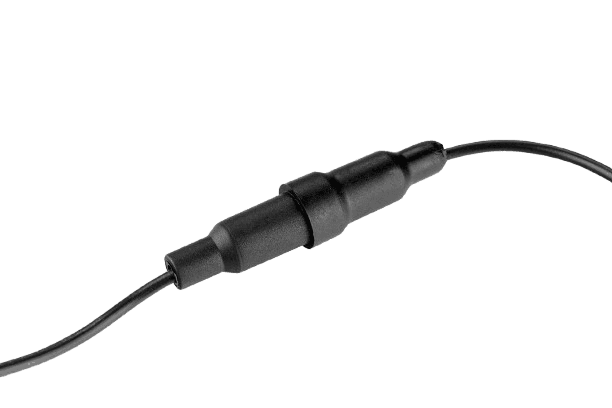

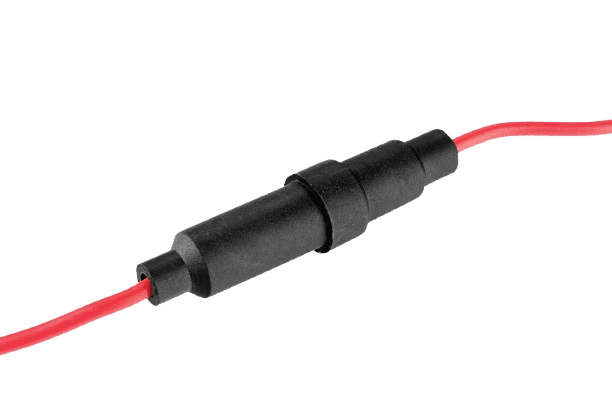

HFH-5
HFH-5
Specification
- Reference Standard
IEC-60127-6
- Compliance marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
Hanging Fuse Holder
V/A Rating ( Standard )
12 Amp 250 V AC
Insulation Resistance at 500 VDC
1000 M Ohms Min.
Contact Resistance (Initial)
20 m Ohms Max.
H.V.Break Down Test (1-Minute)
2 KV AC
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Operating Temp. Range Operating Temp. Range
-20°C TO +85°C
Permissible Temperature
270° for 5 Sec. Max
Mounting
Hanging
Terminals
Solder Type.
Fuse Link Size
Ø6.3 x 32.00 mm
Cap Design
Screw-In
Material
Material
Parameters
Specification
Body
Nylon-Black / Polycarbonate-Transparent
Contacts
Brass ,Tin plating
Flexible Wires
As per request
Reference Standard & Approval
Reference
Standard
&
Approval
Parameters
Specification
Reference Standard
IEC-60127-6
Compliance marking
CE, RoHS ( On Request )
Data Sheet
Elcom HFH-5 Series Data Sheet
330 KB
