Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

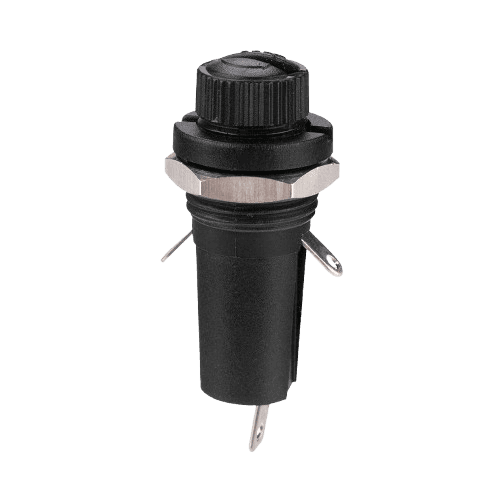

Fuse Holder
Sub Type
Cap Design - Screw In with Coin Slot
V/A Rating
6.3A 250V AC
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Contact Resistance (Initial)
10 m ohms Max
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C to +85°C
Permissible Temperature
270° C, 5 seconds max.
Mounting
Panel, Screw Type
Panel Thickness (standard)
3.00 mm Max
Terminals (Standard)
Solder Type
Fuse Size
ø 5 x 20 mm
Material
Material
Parameters
Specification
Body
Nylon
RoHS compliant
No (Variety Available Through another code)
Colour (Standard)
Black
Current Carrying Parts
Cu Alloy, Tin Plating
Knob Colour
Black or Red
Standard and Approvals
Standard
and
Approvals
Parameters
Specification
Reference Standard
IEC 60127-6
Compliance Marking
CE, RoHS ( On Request )
Features
Features of FH-1B
Features
of
FH-1B
Can be used as an alternative to circuit breakers
Wide range of mounting styles and terminals to suit various design requirements
Wide range of operating temperature - up to 125 Deg Centigrade
Simple mounting styles and economy of space
Availability of synchronized Fuse holders, in either single or double fuse with IEC inlets
Data Sheet
Elcom FH-1B Series Data Sheet
240 KB
