FH-5
FH-5
Specification
- Reference Standard
IEC 60127-6
- Compliance marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

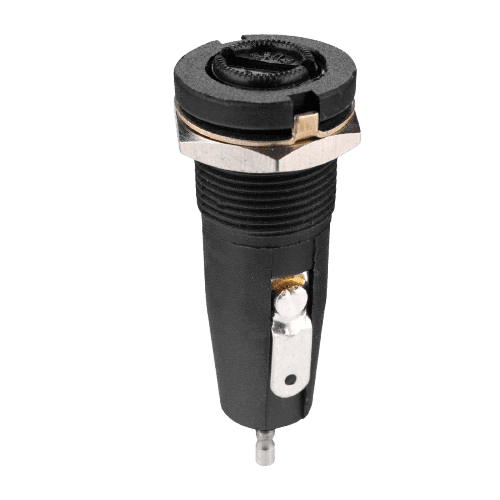

Panel mounting fuse holder
Mounting Style
Panel
Fuse Link Size
ø 6.30 x 32 mm
V/A Rating
10 A, 250VAC
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KV AC
Contact Resistance (Initial)
10 m ohms Max
Operating and Functional Characteristics
Operating
and
Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C to +85°C
Permissible Temperature
270° C, 5 seconds max.
Panel Thickness
6.0 mm Max
Terminals (Standard)
Solder Type
Material
Material
Parameters
Specification
Body
Nylon
Cap
Nylon
Terminals
Brass, Tin Plating
Reference Standard & Approvals
Reference
Standard
&
Approvals
Parameters
Specification
Reference Standard
IEC 60127-6
Compliance marking
CE, RoHS ( On Request )
Features
Features of FH-5
Features
of
FH-5
Availability of synchronized Fuse holders, in either single or double fuse with IEC inlets
Simple mounting styles and economy of space
Wide range of operating temperature - up to 125 Deg Centigrade
Wide range of mounting styles and terminals to suit various design requirements
Can be used as an alternative to circuit breakers
Data Sheet
Elcom FH-5 Data Sheet
243 KB
