Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description

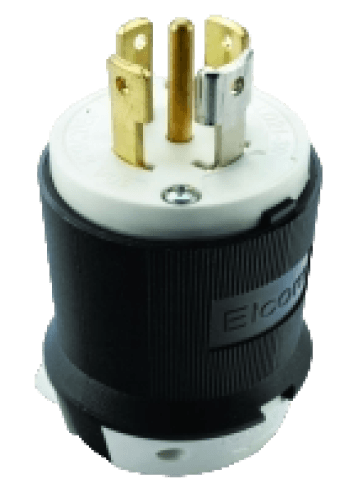

NEMA TWIST LOCK PLUG
Connector Type
Twist lock L21-20P type
V/A Rating
3 Phase Y 120/208 VAC, 20 A
Insulation Resistance At 500 V DC
100 Mohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Permissible Temp. With/Without Load
0°C TO 75°C
Terminals
Screw-type 12 AWG
Material
Material
Parameters
Specification
Body
Nylon, Black
Cord Clamp
Nylon, Natural (White) Tightening Torque : 18-21 Kg-cm
Contact Holder
Nylon, Natural (White)
Retainer
Polycarbonate, Clear
Contact Blade
Copper Alloy Nickel Plated / Unplated
Terminal screws
Brass,Tightening Torque : 12 Kg-cm min.
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
UL-498, NEMA WD 6,CSA C22.2 No.42
Approvals
File No. E362808 (UL LISTED)
Flammability
UL 94, V-0
Download PDF
Datasheet
334 KB
