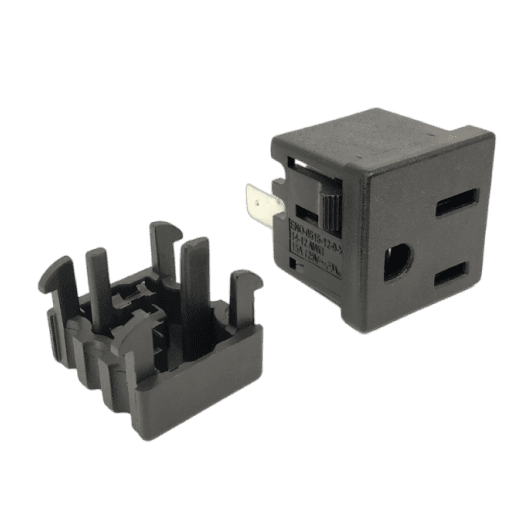

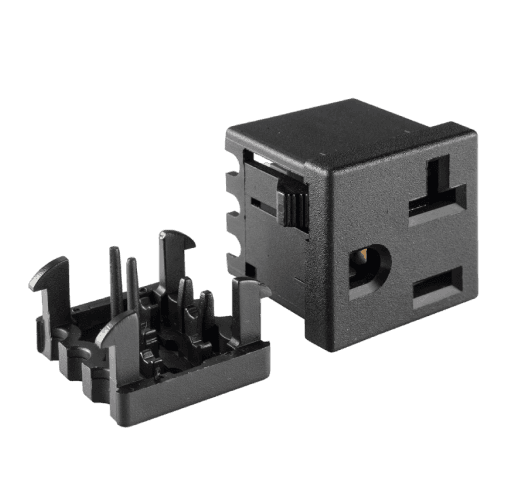

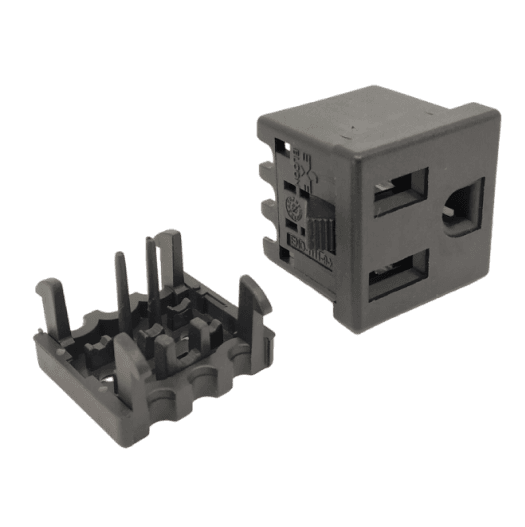

ENO-0520 -11-X, ENO-0520-12-X
ENO-0520
-11-X,
ENO-0520-12-X
Specifications
- Reference Standard
UL-498, UL-486E, NEMA WD 6
- Approvals
cULus
Specifications
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description
NEMA SOCKET (PCB Mounted)
Connector Type
250 V, 30 A
Contact Resistance (Initial)
10 mohms max
Insulation Resistance At 500 V DC
100 Mohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating & Functional Characteristics
Operating
&
Functional
Characteristics
Parameters
Specification
Mounting
Panel, Screw & PCB Solderable type
Terminals
Screw-type #14 to #8 AWG
Permissible Temp. With/Without Load
0°C TO 65°C * on request upto 125°C
Material
Material
Parameters
Specification
Body, Cover
Nylon-6, GF20%, V-2
Contacts, Terminals
Brass , TIn Plated .
Terminal screws
Brass Tightening Torque : 12 Kg-cm min
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standards
NEMA WD 6; UL-498, CSA: 22.2 No. 42-10
Approvals
E 258604,Vol-2
Benefits
Why to choose our products ?
Why
to
choose
our
products
?
- Faster installation: IDC terminals eliminate the need for screws or soldering, saving time during assembly, especially with ribbon cables containing multiple wires.
- Simplified process: The IDC technique simply pushes the wire into the terminal, creating a reliable connection by displacing the insulation.
Download PDF
Datasheet
562 KB
Looking for help?
Looking
for
help?
Our team is ready to assist you and provide the support you need
