Products>Electromechanical Components>NEMA Connectors>Nema sockets>ENO-0515-43-X
Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description

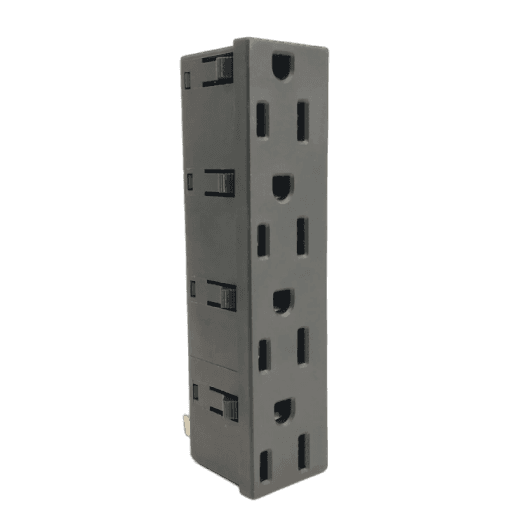

NEMA SOCKET
Connector Type
5-15R Type
V/A Rating
125 VAC, 15 A
Contact Resistance (Initial)
10 mohms max
Insulation Resistance At 500 V DC
100 Mohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Snap mounting
Panel Thickness
1.00-2.00mm
Terminals
6.30 x 0.80
Withdrawal force in kg
1.3 to 6.7 kg
Permissible Temp. With/Without Load
0°C TO 65°C * on request upto 125°C
Permissible Temp. For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Body, Cover
Nylon-6, UL-94 V-0
Contacts, Terminals
Brass ,Tin Plating
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
UL-498, UL-486E, NEMA WD 6:2002, CSA C22.2 NO. 42-99.
Approvals
cULus
Download PDF
Datasheet
327 KB
