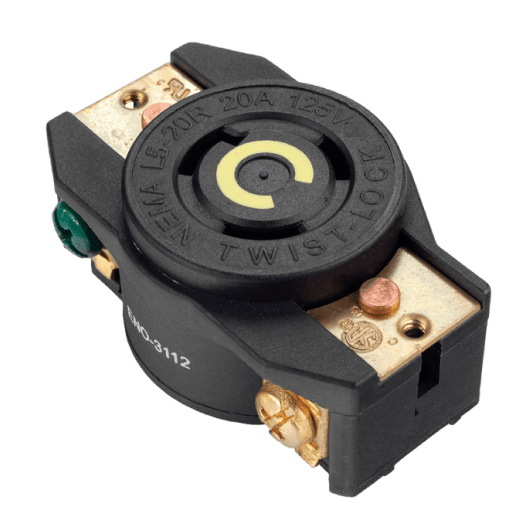

Products>Electromechanical Components>NEMA Connectors>Nema sockets>ENO-3112-R, ENO-3112-F-R
Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description
NEMA SOCKET
Connector Type
Twist lock L5-20R type
V/A Rating
125 V, 20 A
Contact Resistance (Initial)
10 mohms max.
Insulation Resistance At 500 V DC
100 Mohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Mounting
Panel, Screw-type
Terminals
Screw-type #14 to #10 AWG
Permissible Temp. With/Without Load
Permissible Temp. With/Without Load
Material
Material
Parameters
Specification
Body, Cover
Nylon-6, GF20%, V-2
Contacts, Terminals
Brass
Terminal screws
Brass,Tightening Torque : 12 Kg-cm min.
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
UL-498, UL-486E, NEMA WD 6 CAN/CSA C22.2 No.0-M91, CSA C22.2 No.42-99
Approvals
cULus, cCSAus
Download PDF
Datasheet
638 KB
