Specification
Electric Characteristics
Electric
Characteristics
Parameters
Specification
Product Category / Description

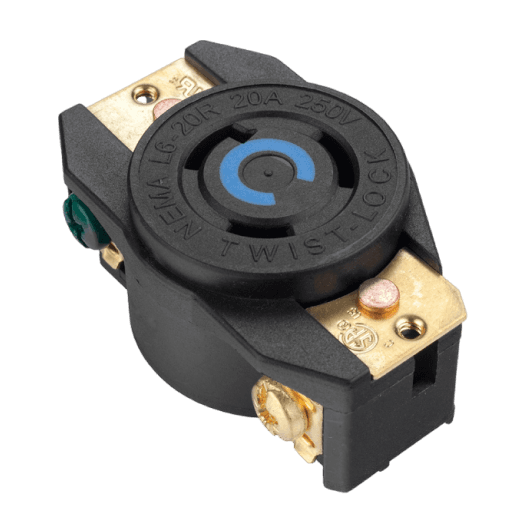

Nema Socket
V/A Rating
250V 20A
Insulation Resistance at 500 VDC
100 M ohms Min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Contact Resistance (Initial)
10 m ohms Max
Operating/Characteristics
Operating/Characteristics
Parameters
Specification
Operating Temp. Range
0 To 65°C
Flammability Rating
UL 94 V-2
Mounting Style
Screw - Type
Terminals (Standard)
Screw - Type # 14 To # 10 AWG
Tightening Torque
12 Kg-cm Minimum
Material
Material
Parameters
Specification
Body
Thermoplastic
RoHS compliant
Yes
Colour (Standard)
Black
Current Carrying Parts
Cu Alloy
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
UL-498, UL-486E, NEMA WD 6:2002, CAN / CSA C22.2 No. 0-M91, CSA C22.2 No. 42-99
Safety Approvals
cULus, CSA
