Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

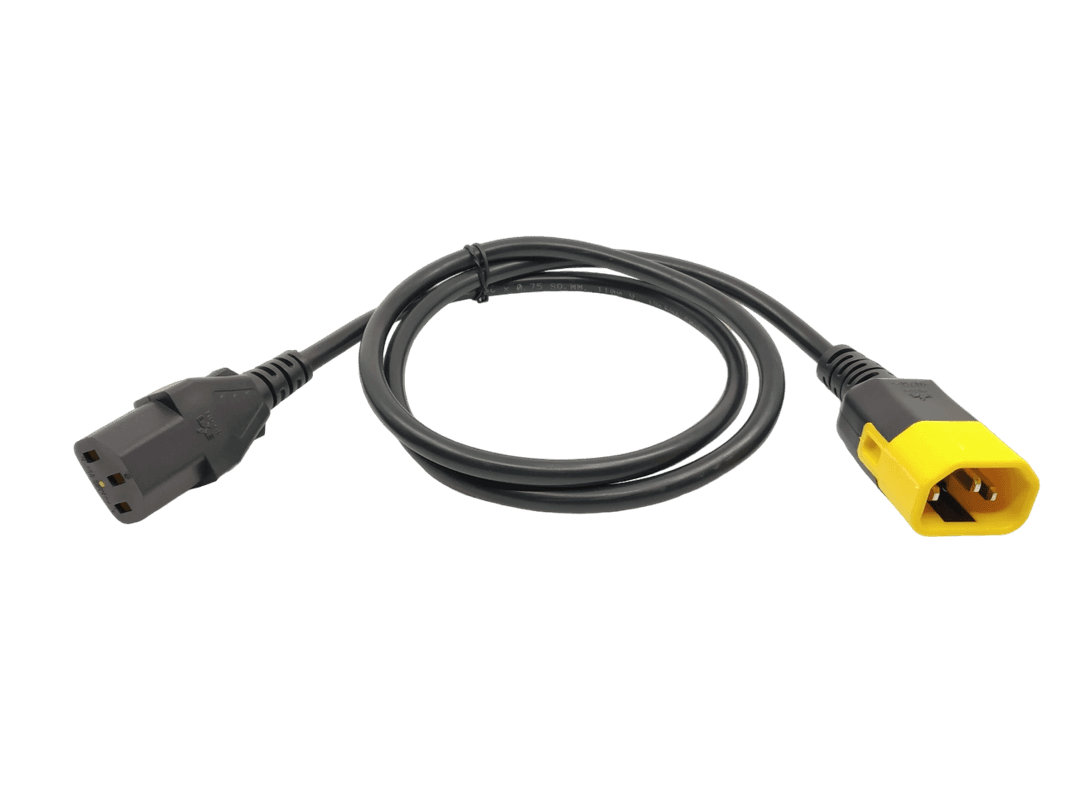

C13 & C14 Power cord with V lock option
V/A Rating
6A/10A, 250 V AC
Insulation Resistance at 500 VDC
100 M Ohms Min.
H.V.Break Down Test (For 1-Minute)
1.5 KV AC.
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C TO 70°C
Length (L), Meters
Standard = 1.0 Mtr (Refer Ordering Table)
Material
Material
Parameters
Specification
Cable
PVC
Conductors
Copper
Conductors (Size)
3X0.75 sq.mm ,3X1.0 sq.mm
Contacts
Copper Alloy, Nickel Plated
Reference Standard/Approvals
Reference
Standard/Approvals
Parameters
Specification
Reference Standard
IEC-60320-3, CSA C22.2 NO.42, UL498
Compliance Marking
CE, RoHS (on request)
Download PDF
EMC-8-Series 4
832 KB
