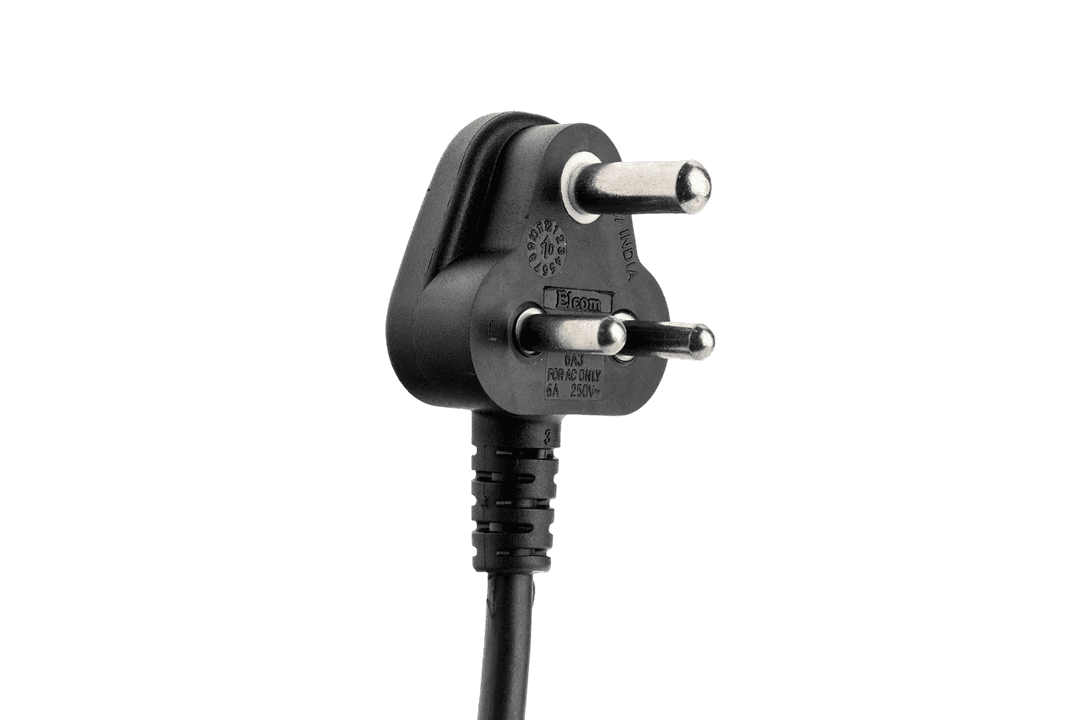

EPC-6
EPC-6
Specification
- Reference Standard
IS-1293,IEC-60884-1,IEC-60799, IES-60227,IEC-60320-1
- Approval
CE
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
V/A Rating
6Amp 250V AC / 10Amp,250V AC
Insulation Resistance at 500 VDC
100 M Ohms Min.
H.V.Break Down Test (For 1-Minute)
1.5 KV AC.
Conductor Resistance
39 Milliohms/Meter Maximum
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Permissible Temp. (With/Without Load)
-20°C TO 70°C
Length
As per customer requirement
Material
Material
Parameters
Specification
Cable
PVC
Conductors
Copper
Contacts
Brass, Nickel Plating
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
IS-1293,IEC-60884-1,IEC-60799,IES-60227,IEC-60320-1
Compliance Marking
CE, RoHS,ISI ( On Request )
Data Sheet
Elcom EPC-6 Data Sheet
163 KB
