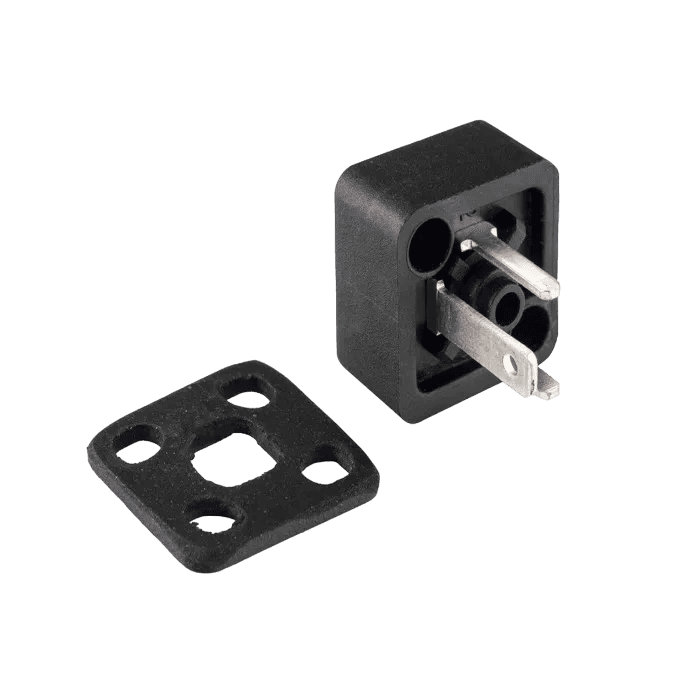

MEM-2 & 3 Slash PF-8 (Non Approved Series)
MEM-2
&
3
Slash
PF-8
(Non
Approved
Series)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Connector Type
Solenoid Connector Style C, Square Plug
V/A Rating
6 A 250 VAC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Connector Mounting
Screw Type
Terminals
Solder Type
Permissible Temp. With/Without Load
-0°C to 90°C
Material
Material
Parameters
Specification
Body
Nylon-6 GF-Black
Rubber Gasket
Nitrile
Terminals
Brass, Tin Plated
Mounting Screw
M.S, Zinc Plating With Yellow passivation
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
Download PDF
MEM-2-3-Slash-PF-8-9-Non-Approved-Series-1
399 KB
