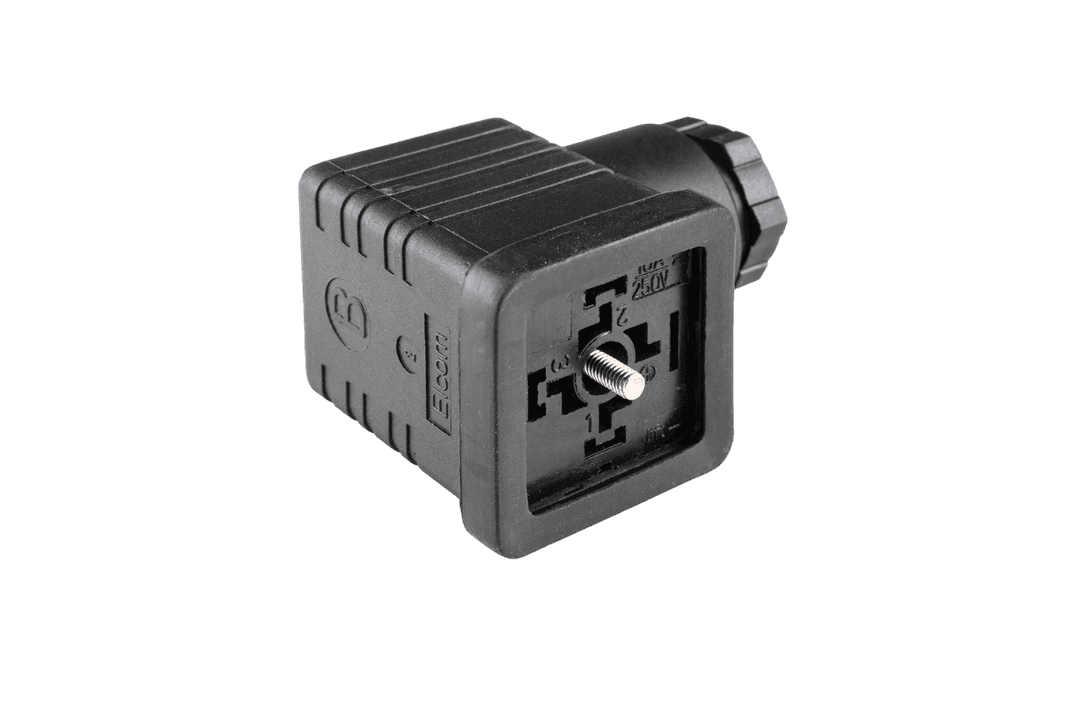

HD-209 & 211 & 311-IN-BPV (Non Approved Series)
HD-209
&
211
&
311-IN-BPV
(Non
Approved
Series)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Connector Type
Solenoid Connector Style A, Square Type
Voltage Rating (Non-illuminated)
10 A 250 VAC
Voltage Rating (illuminated)
110 VAC, 230 VAC, 12 VDC, 24 VDC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Connector Mounting
Screw Mounting
Terminals
Screw Type
Permissible Temp. With/Without Load
0°C to 90°C
Material
Material
Parameters
Specification
Body
Illuminated - Polycarbonate(Translucent)
Rubber Gasket
Nitrile
Contacts
Brass, Tin Plated
Terminal (Square) Nut
Brass, Nickel Plated
Terminal Screw
M.S., Zinc Plated
Mounting Screw
M.S, Zinc Plating With Yellow Passivation
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
Download PDF
HD-209-211-311-IN-BPV-Non-Approved-Series-1
448 KB
