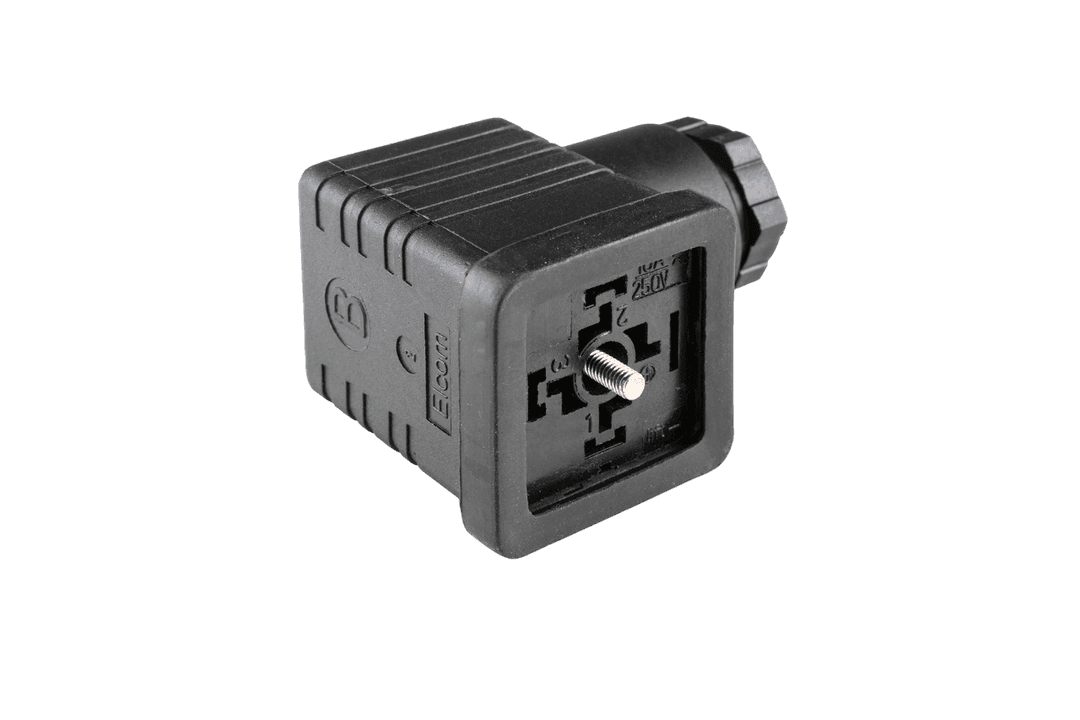

HD-209 & 309 & 211& 311 (Non Approved Series)
HD-209
&
309
&
211&
311
(Non
Approved
Series)
Specification
Parameter
Parameter
Parameters
Specification
Connector Type
Solenoid Connector Style A, Square Type
Voltage Rating (Non-illuminated)
10 A 250 VAC
Voltage Rating (illuminated)
24 VAC, 110 VAC, 120 VAC, 230 VAC, 240 VAC 12 VDC, 24 VDC, 48 VDC, 110 VDC, 220 VDC, 230 VDC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC (Applicable only For Terminal with Outer Body)
Connector Mounting
Screw Mounting
Terminals
Screw Type
Permissible Temp. With/Without Load
-0°C to 90°C
Material
Material
Parameters
Specification
Body
Non-illuminated - Nylon-6, GF (Black/Grey), Illuminated - Polycarbonate(Translucent)
Rubber Gasket
Nitrile
Contacts
Brass, Tin Plated
Terminal (Square) Nut
Brass, Nickel Plated
Terminal Screw
M.S., Zinc Plated
Mounting Screw
M.S, Zinc Plating With Yellow Passivation
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
