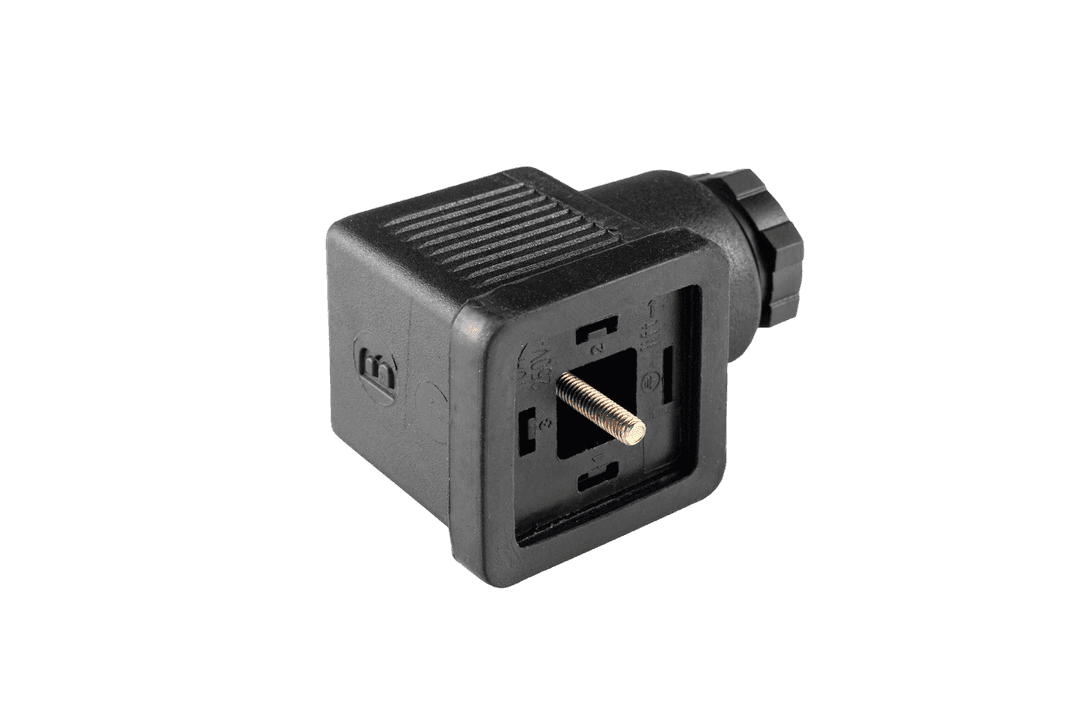

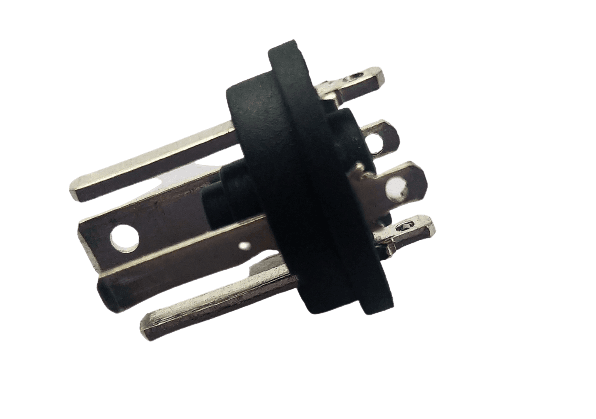

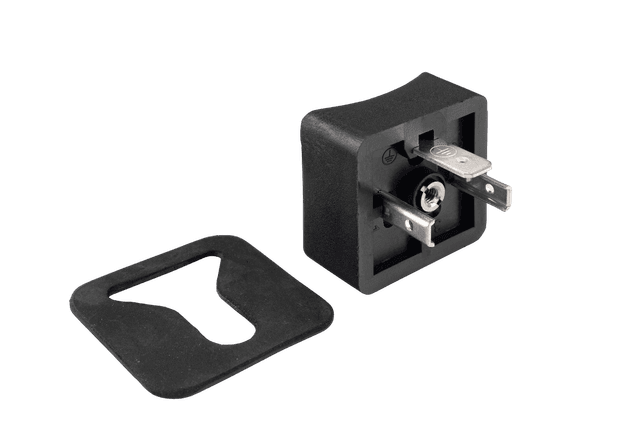

ME-209 & 309 & 211 & 311 (Non Approved Series)
ME-209
&
309
&
211
&
311
(Non
Approved
Series)
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Connector Type
Solenoid Connector Style A, Square Type
Voltage Rating (Non-illuminated)
10 A 250 VAC
Voltage Rating (illuminated)
12 VAC/VDC, 24 VAC/VDC, 110 VAC, 230 VAC
Voltage Rating (illuminated)-Dual Voltage
12 VDC, 24 VDC, 48 VDC, 110 VDC, 230 VDC
Voltage Rating (illuminated)-R
24/48 VDC, 110/230 VAC
Contact Resistance (Initial)
15 m ohms max.
Insulation Resistance At 100 V DC
100 M ohms min.
H.V.Break Down Test (For 1-Minute)
2 KVAC
Connector Mounting
Screw Mounting
Terminals
Screw Type
Permissible Temp. With/Without Load
0°C to 90°C
Material
Material
Parameters
Specification
Body
Non-illuminated - Nylon-6, GF (Black/Grey), Illuminated - Polycarbonate(Transparent)
Rubber Gasket
Nitrile
Contacts
Phospher Bronze, Tin Plated
Terminal (Square Barrel)
Brass, Tin Plated
Terminal Screw
Brass, Nickel Plated
Mounting Screw
M.S, Zinc Plating With Yellow Passivation
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
DIN-43650, ISO 4400, EN-175301-803
