Specification
Parameter
Parameter
Parameters
Specification
Product Category / Description

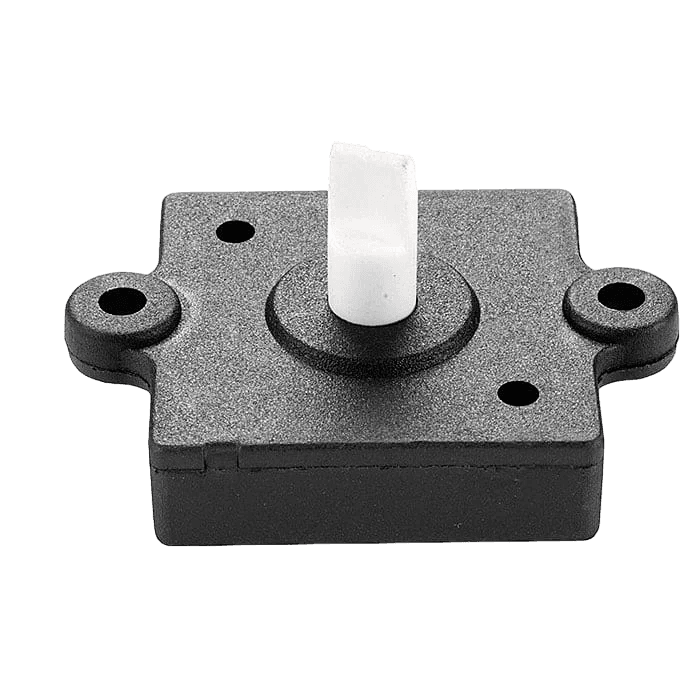

Rotary Switch
Mounting Style
Chassis Mounting
Sub Type
Function Switch
Electrical Characteristic
Electrical
Characteristic
Parameters
Specification
V/A Rating
4A 250VAC / 125 VAC
Insulation Resistance at 500 VDC
1000 M ohms Min.
H.V.Break Down Test (For 1-Minute)
1 KVAC
Contact Resistance (Initial)
20 m ohms Max
Electrical Life
10,000 Cycles / Pole
Functional/Operating Characteristics
Functional/Operating
Characteristics
Parameters
Specification
Operating Temp. Range
-20°C to +85°C
Mounting
Screw Mounting
Terminals (Standard)
Push In Type - Solder less
Material
Material
Parameters
Specification
Body
Nylon
RoHS compliant
No (Variety Available Through another code)
Colour (Standard)
Black
Current Carrying Parts
Cu Alloy, Nickel Plating
Shaft Colour
White
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
IEC-61058-1
CE Marking
No (Variety Available Through another code)
Features
Features of ERS-114 Series
Features
of
ERS-114
Series
Available in various & / or customized options wrt Indexing angles.
Standard / Customized shaft dimensions and colours.
Push In Type - Solder less Terminal options
Data Sheet
Elcom ERS-114 Data Sheet
187 KB
