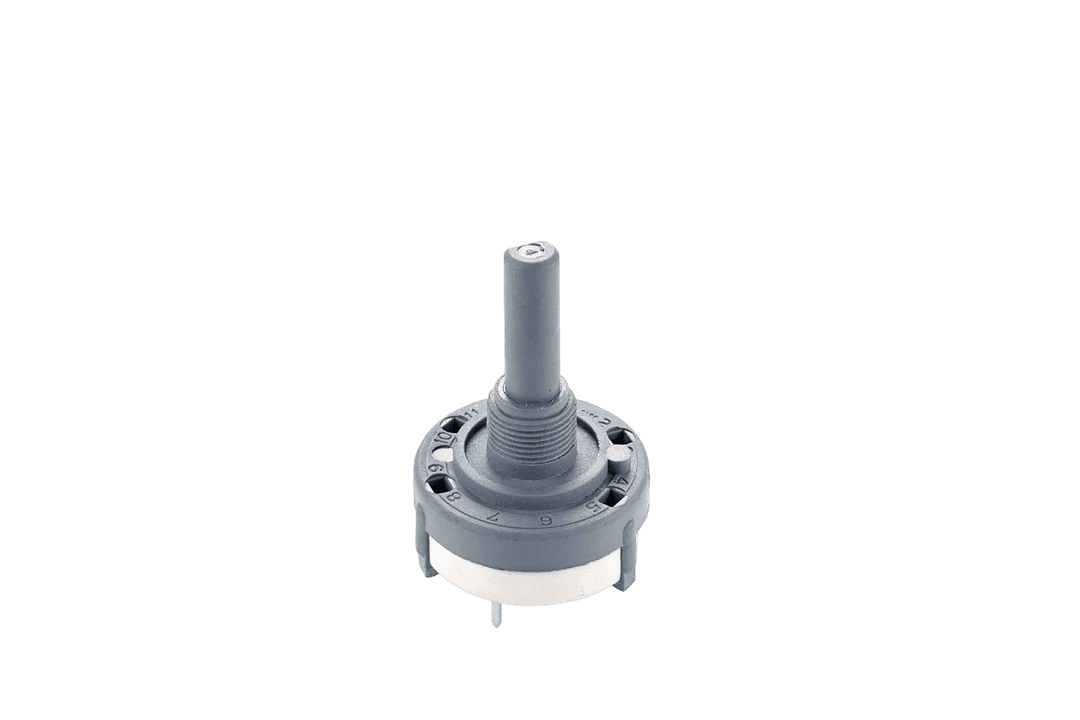

ERS-20
ERS-20
Specification
- Reference Standard
IEC-61058-1, UL-1054
- Compliance Marking
CE, RoHS ( On Request )
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Type
Binary coded Rotary switch,22.5 indexing
V/A Rating
150mA, 50V AC/DC
Non Switching current rating
500 mA
Non Switching current rating
3mm max.
Contact Resistance(Initial)
50 m Ohms. Max
Insulation Resistance at 500 V DC
25000 M Ohms
H.V.Break Down Test(For 1-Minute)
250V
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Mounting
Panel With Nut
Terminals
Solder-type
Breaking Torque
7kg-cm Mi
Electrical Life
10,000 Cycles min.
Permissible Temp.With/Without Load
-25°C TO +85°C
Permissible Temp For Soldering
270°C for 5 Sec. Max.
Material
Material
Parameters
Specification
Plastic parts
Glass filled Nylon, PBT
Terminals/ contacts
Copper alloy, Silver plated
PCB
Glass epoxy, Gold plated
Reference Standard
Reference
Standard
Parameters
Specification
Reference Standard
IEC-61058-1, UL-1054
Compliance Marking
CE, RoHS ( On Request )
Data Sheet
Elcom ERS-20 Data Sheet
569 KB
