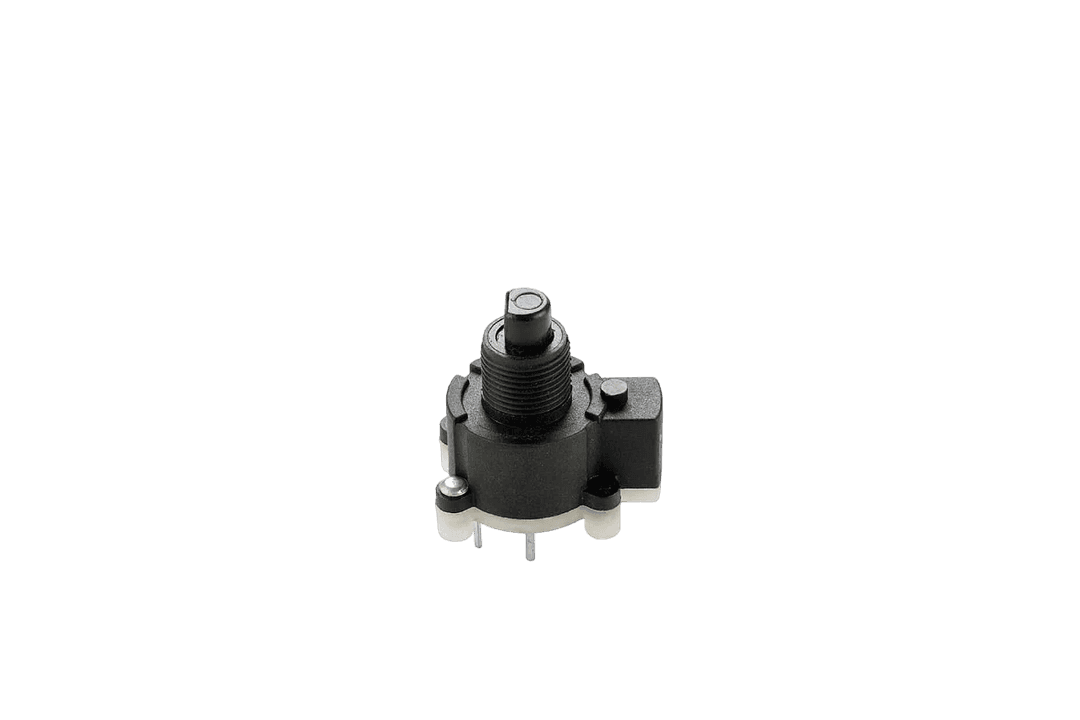

ERS-45

Request a Quote
Specification
certiicon1
certiicon1
  • Reference Standard

    IEC-61058-1, UL-1054

  • Compliance Marking

    CE, RoHS ( On Request )

Specification
starIcon

Electrical
Characteristics

Parameters
Specification
Type And Function
Rotary Switch, 1 Pole, 5 Way
V/A Rating
1A 250V AC
Panel Thickness
3.0 Max.
Contact Resistance(Initial)
20 m Ohms Max
Insulation Resistance at 500 V DC
1000 M Ohms Min
H.V.Break Down Test(For 1-Minute)
1.0 KV AC
starIcon

Operating/Functional
Characteristics

Parameters
Specification
Mounting
Panel With Nut
Terminals
Solder-type
Electrical Life
10,000 Cycles Min.
Operating Torque
0.4 To 0.7 Kg-cm
Mounting Torque
7.0 Kg-cm Min.
Permissible Temp.With/Without Load
-25°C TO +85°C
Permissible Temp For Soldering
270°C for 5 Sec. Max.
starIcon

Material

Parameters
Specification
Rotor & Contact Housing
Nylon GF
Rotor
Delrin, Black
Terminals & Contacts
Brass, Silver Plating
starIcon

Reference
Standard

Parameters
Specification
Reference Standard1-Minute) 14
IEC-61058-1, UL-1054
Compliance Marking
CE, RoHS ( On Request )
Data Sheet
PDF
Elcom ERS-45 Data Sheet
569 KB
download
