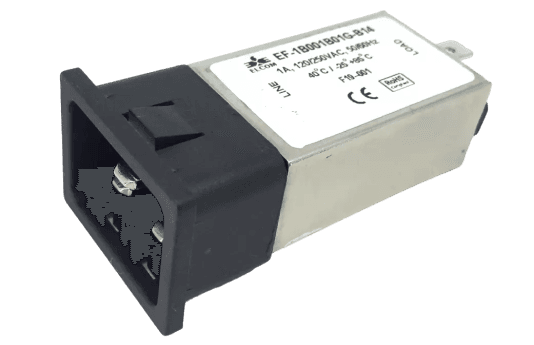

EB14
EB14
Specification
- Reference Standard
EN60939-3:2015 & EN60939-2:2005 standards.
- Compliance Marking
CE, ROHS
Specification
Technical Specification
Technical
Specification
Parameters
Specification
Operating voltage
120/250 VAC
Current rating
1A-20A
Frequency
50/60Hz
Voltage drop
1 Volt max.
High potential test voltage
P -> E 1500VAC P -> N 1414VDC (applicable for excluding surge suppressor filter)
Insulation resistance
≥ 300 MΩ @ 500VDC (PN→E)
Operating temperature
40°c /-25°c +85°c
Safety Approvals
Safety
Approvals
Parameters
Specification
CE, RoHS
Yes
Features
Features Of EB14 Filter
Features
Of
EB14
Filter
Filters available in single stage and double stage.
Filter available in snap fit provision.
CRCA metal can with nickel plating provides good aesthetic and corrosion protection
Input connection through IEC 60320 C20 plug
Benefits
Benefits Of EB14 Filter
Benefits
Of
EB14
Filter
- All filters provide high attenuation performance.
- Filters available in medical version without capacitor to earth.
- With surge suppressor filters also available.
- Applications - Consumer product, Medical equipment, Industrial application, Electrical automation equipment, Solar inverter
Download PDF
EB14 Data Sheet
666 KB
