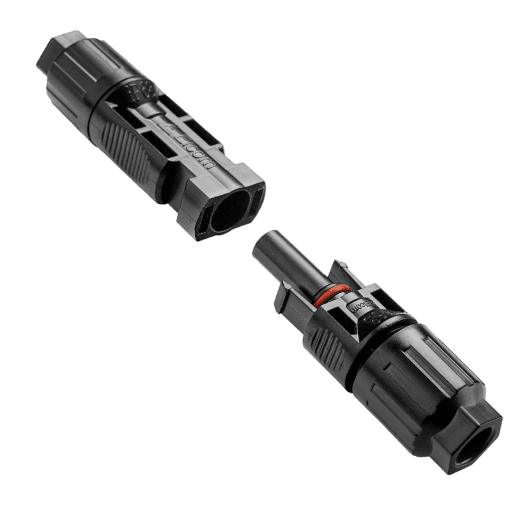

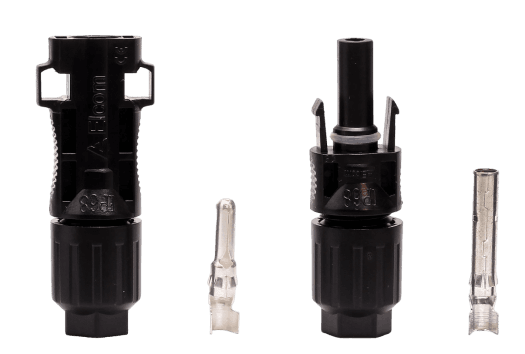

Products>Solar Connectors>PV Cable Connector>ESC-4-PM-X
Specification
Electrical Characteristics
Electrical
Characteristics
Parameters
Specification
Product Category / Description

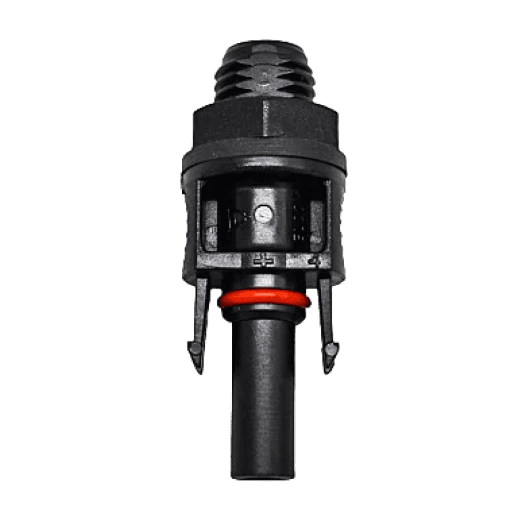

Ø4mm PV Connector PANEL MOUNTING TYPE
Rated current
4 & 6sqmm : 30A 2.5sqmm : 25A
Rated voltage
500V DC
Test voltage
AC(1min)
Typical contact Resistance
<05mOhms
Degree of protection (Mated)
IP68(IEC 60529)
Operating/Functional Characteristics
Operating/Functional
Characteristics
Parameters
Specification
Flammability class
UL 94, V-0
Insulation material
PP0
Protection class
II
Over voltage category
Category III
Relative Humidity (%)
85%
Temperature range
-40°C TO +85°C
Upper limiting temperature
105°C
Insertion force (male Female hsg.)
≤50N
Withdrawal force (male Female hsg.)
≥100N
Material
Material
Parameters
Specification
Contact material
Copper/Copper Alloy,Silver plated
Cable size
2.5mm, 4mm & 6mm
Rated Impulse Voltage
16KV
Application Class
A
Pollution Degree
3
Pin dimensions
Ø4.0mm
Stripping Length
8 mm.
Sealing Material
Silicon Rubber
Minimum Creepage Distance
Contact to contact not applicable
Reference Standard & Approvals
Reference
Standard
&
Approvals
Parameters
Specification
Reference Standard
IEC 62852:2014
Approvals
TUV
Download PDF
Elcom ESC-4-PM-X Data Sheet
613 KB
